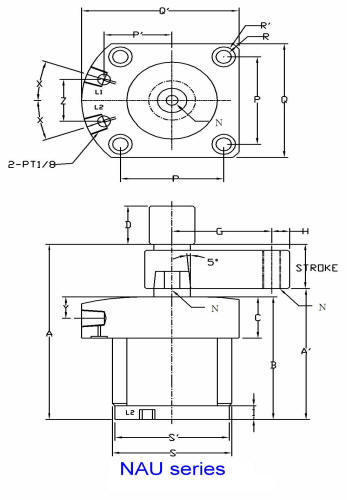

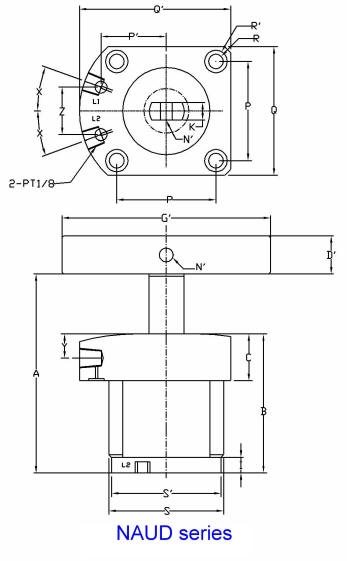

Upper Flange Type 上安装型式

NHU-32

NHUD-32

NHU-40

NHUD-40

NHU-50

NHUD-50

NHU-63

NHUD-63

Max.. Operating Pressure

最大使用压力

Normal Operating pressure

一般使用压力

20-45kg/cm2

Cylinder Operating 作动型式

Double Acting

Max. Oil Flow Rate(cm2/s)最大流速

11.8

22.6

39.6

63.0

90°( 0°,45°,60°)

14

14

14

14

Clamping Stroke 下压行程

15

15

15

15

Piston Diameter 缸体内径

32

40

50

63

Piston Rod Diameter 活塞杆径

20

20

20

25

Theoretical Force(25kg/cm2 )夹持力

125kg

200kg

400kg

600kg

A(unclamp) 未夹最高点

111

113.6

114.5

118

A’(clamp) 夹紧最低点

82

84.6

85.5

89

B

76

80

80

85

C

25

27

27

32

D

25.4

25.4

25.4

32

D’

22

22

22

25.4

G

55

55

55

75

G’

120

120

120

140

H

10

10

10

11

I

9

9

9

9

K

10

10

10

12

L1(clamp) + L2(unclamp)管接式

----------------------------------------

Manifold mounting 油路板式

1/8PT

----------------

P7-O-RING

1/8PT

-----------------

P7-O-RING

1/8PT

---------------

P7-O-RING

1/8PT

---------------

P7-O-RING

N

M10x1.5

M10x1.5

M10x1.5

M12x17.5

N’

φ8

φ8

φ8

φ10

P/ P’

44/30

48 / 31.4

57 / 37.6

70/46

Q/Q’

55/68.5

62 / 71.5

74 / 87

88/105.5

R/R’

φ6.5 / φ11

φ6.5 / φ11

φ8.5 / φ14

φ8.5 / φ14

S(mm) Diameter

M50x1.5

M55x1.5

M65x1.5

M80x1.5

S’

49

53

63

77

X(angle)

22.5°

22.5°

20°

22.5°

Y

12.5

14

14

Z

24.9

26

27.4
