Flange Type 底座型 |
NHS-25 |
NHS-32
NHSD-32 |
NHS-40
NHSD-40 |
NHS-50
NHSD-50 |
NHS-63
NHSD-63 |
|
Threaded Type 螺牙型 |
NHTS-25
NHTSD-25 |
NHTS-32
NHTSD-32 |
NHTS-40
NHTSD-40 |
NHTS-50
NHTSD-50 |
|
|
Max.. Operating Pressure
最大使用压力 |
70kg/cm2 |
|
Normal Operating Pressure
一般使用压力 |
20-45kg/cm2 |
|
Cylinder Operating
缸体运行方式 |
Double Acting 复动 |
|
Max.Oil Flow Rate(cm2/s)
最大流速 |
4.7 |
11.8 |
22.6 |
39.6 |
63 |
|
Swivel Angle(degree)
转角度数 |
90°( 0°,45°,60°) |
|
Swivel Stroke( mm)
转角行程 |
12 |
14 |
14 |
14 |
14 |
|
Clamping Stroke( mm)
夹紧行程 |
14 |
15 |
15 |
15 |
15 |
|
Piston Diameter(mm)
活塞直径 |
25 |
32 |
40 |
50 |
63 |
|
Piston Rod Diameter(mm)
活塞杆径 |
18 |
20 |
20 |
20 |
25 |
|
Theoretical Force(25kg/cm2 )
理论夹力 |
59kg |
125kg |
200kg |
400kg |
600kg |
|

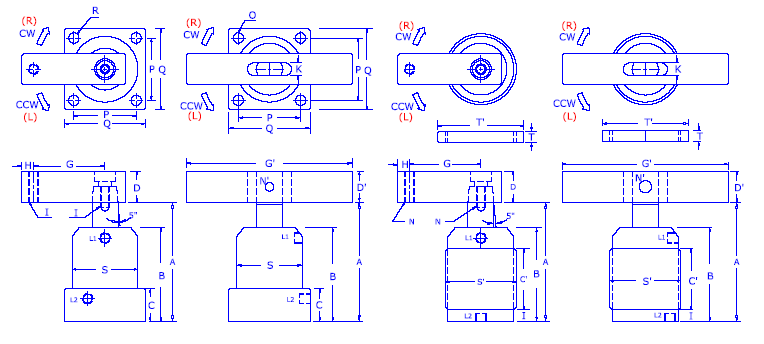

A(unclamp)(mm)状态 |
100 |
111 |
113.6 |
114.5 |
118 |
|
B(mm) |
70 |
76 |
80 |
80 |
85 |
|
C(mm) |
23 |
25 |
27 |
27 |
32 |
|
C’(mm) |
35 |
45 |
45 |
45 |
|
|
D(mm) |
25.4 |
25.4 |
25.4 |
25.4 |
32 |
|
D’(mm) |
19 |
22 |
22 |
22 |
25.4 |
|
G(mm) |
50 |
55 |
55 |
55 |
75 |
|
G’(mm) |
100 |
120 |
120 |
120 |
140 |
|
H(mm) |
10 |
10 |
10 |
10 |
11 |
|
I(mm) |
9 |
9 |
9 |
9 |
|
|
K(mm) |
9 |
10 |
10 |
10 |
12 |
|
L1(clamp)夹紧
L2(unclamp)放松 |
1/8PT |
1/8PT |
1/8PT |
1/8PT |
1/8PT |
|
N(mm) |
M10x1.5 |
M10x1.5 |
M10x1.5 |
M10x1.5 |
M12x1.75 |
|
N’(mm) Diameter |
8 |
8 |
8 |
8 |
10 |
|
P(mm) |
40 |
44 |
48 |
57 |
70 |
|
Q(mm) |
50 |
55 |
62 |
74 |
88 |
|
R(mm) Diameter |
6.5 |
6.5 |
8.5 |
8.5 |
10.5 |
|
S(mm) Diameter |
45 |
50 |
54 |
65 |
80 |
|
S’(mm) |
M45x1.5 |
M50x1.5 |
M55x1.5 |
M65x1.5 |
|
|
T(x2pcs)(mm) |
10 |
11 |
11 |
12 |
|
|
T’(mm) Diameter |
65 |
70 |
75 |
85 |
|
Ordering example: 订购范例
| NHS |
L |
- |
40 |
F |
X |
90° |
| MODEL NAME |
SWIVEL DIR |
|
PISTON φ |
|
|
ANGLE |
| NHS |
CW -R |
|
25 |
F-manifold 油路式 |
|
0° |
| NHSD |
CCW-L |
|
32 |
BLANK-piping |
|
45° |
| |
NONSWING-P |
|
40 |
空白----接管式
|
|
60° |
| |
|
|
50 |
|
|
90° |
| |
|
|
63 |
|
|
|
| |
|
|
|
|
|
|
MANIFOLD TYPE:油路板尺寸图
 |
MODEL |
A |
B |
O-RING |
| NHS(D)-25 |
15 |
18 |
S4 |
| NHS(D)-32 |
17 |
24 |
S4 |
| NHS(D)-40 |
20 |
26 |
S4 |
| NHS(D)-50 |
25 |
30 |
S4 |
| NHS(D)-63 |
30 |
40 |
S4 |
|
